S&S Diesel Motorsport
Ford 6.7L Power Stroke Fuel Leak Prevention Kit
Fits 2011–2026 Ford F-250 through F-750 with the 6.7L Power Stroke diesel
The Problem: Two Plastic Leak Points Next to a Hot Exhaust
Ford's engine-mounted fuel filter housing and the injector return fitting are both made of plastic. Plastic resists corrosion, but it gets brittle after years of heat cycles. When the filter housing cracks, it can spray diesel onto the inboard exhaust and start an engine fire, which Ford's engineers politely call a "thermal event."
The Fix: Billet Aluminum, Both Leak Points Covered

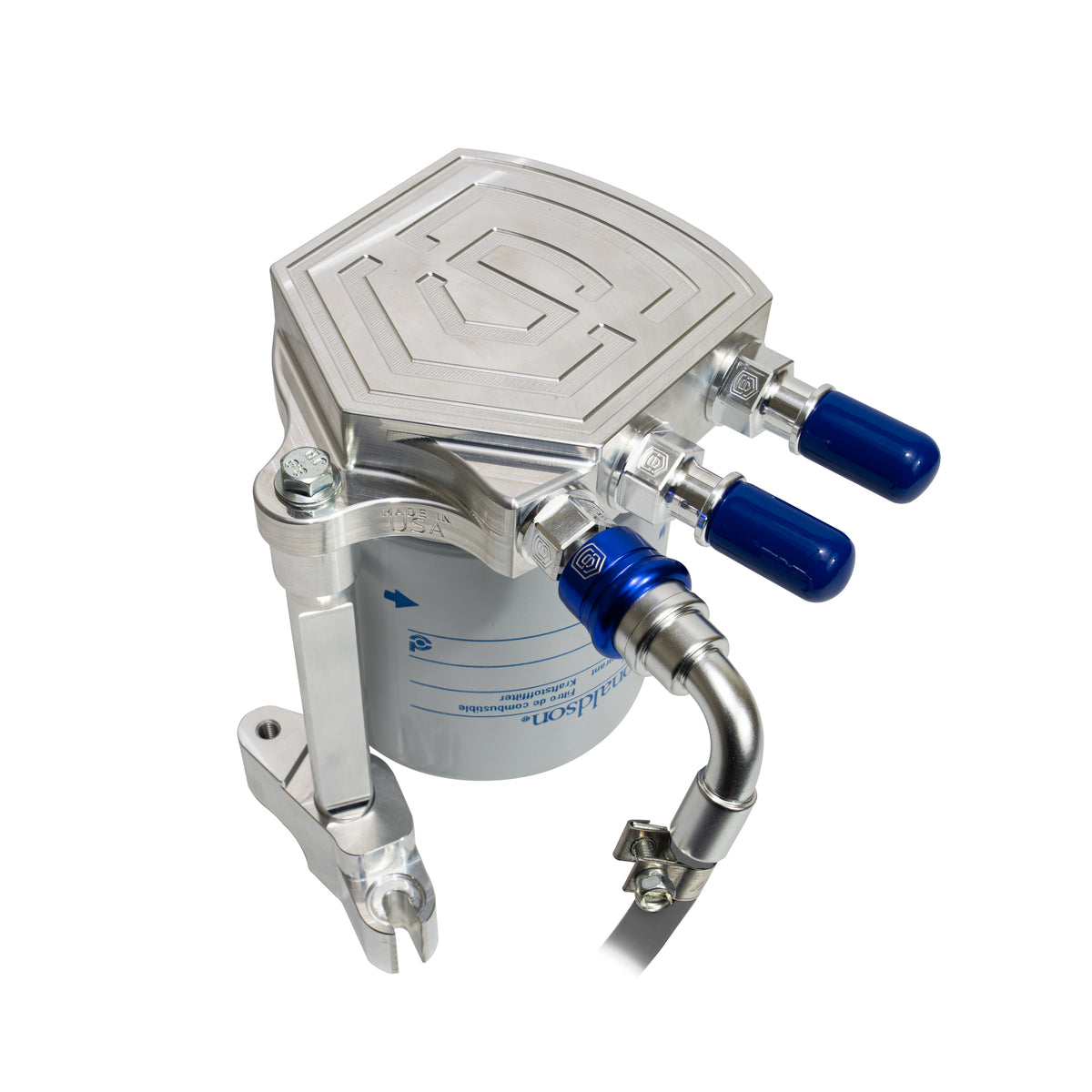

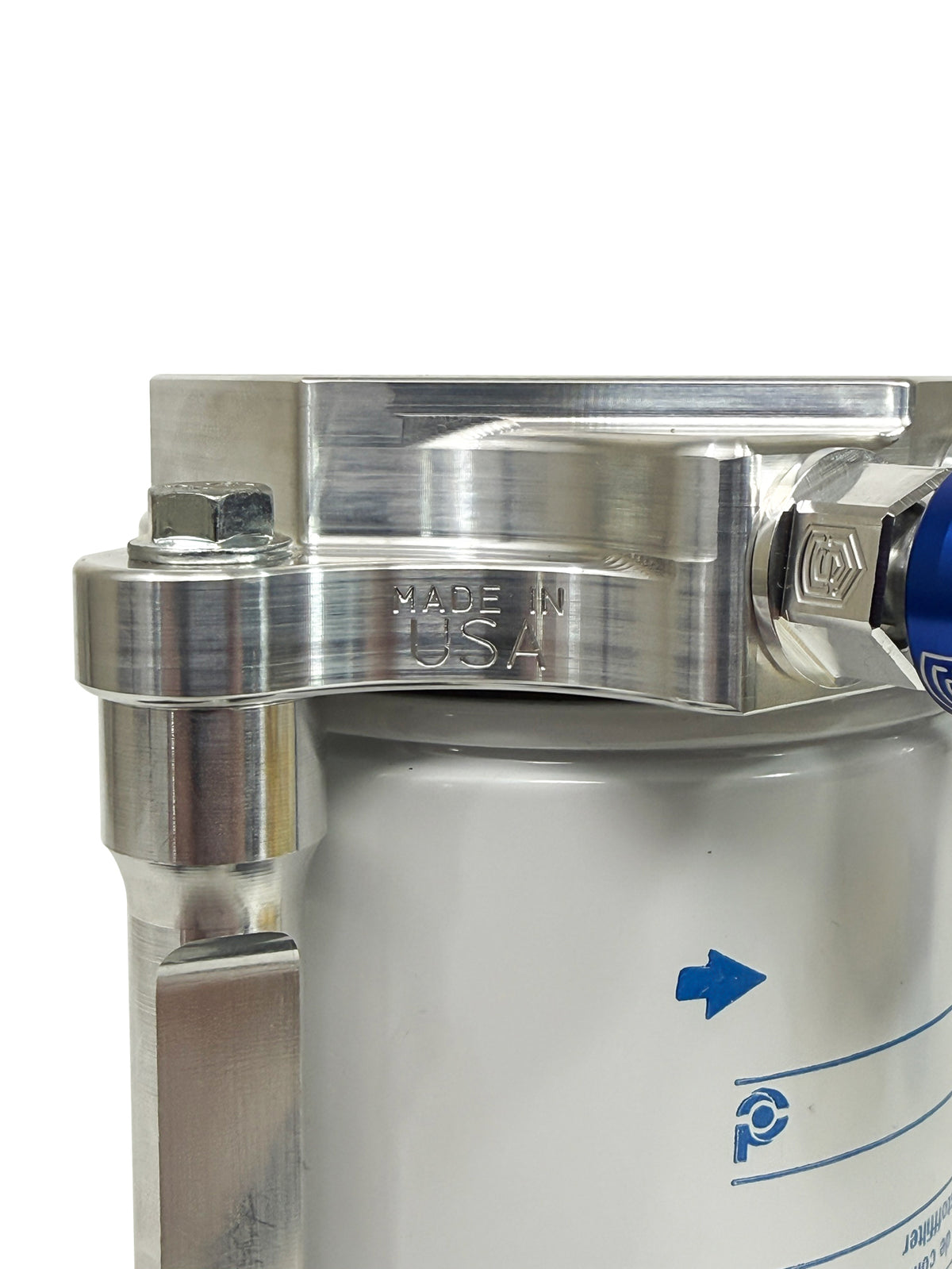

The S&S Leak Prevention Kit (LPK) is the only all-in-one kit that replaces both plastic parts while meeting or beating Ford's filtration specs. Instead of reusing the OEM filter cup, S&S uses a two-post mount that holds a larger filter, keeping factory 4-micron filtration while nearly doubling dirt-holding capacity. The aluminum Fuel Leak Prevention Fitting for the injector return comes standard in every kit.
Features
- Billet aluminum engine-mounted fuel filter housing replaces the crack-prone plastic OEM unit
- OEM-spec filtration: 4-micron absolute at 99% efficiency
- Nearly 2x dirt-holding capacity: 23 grams vs. 12 grams OEM
- Fittings pre-installed with o-ring sealed joints rated to 2,000 psi

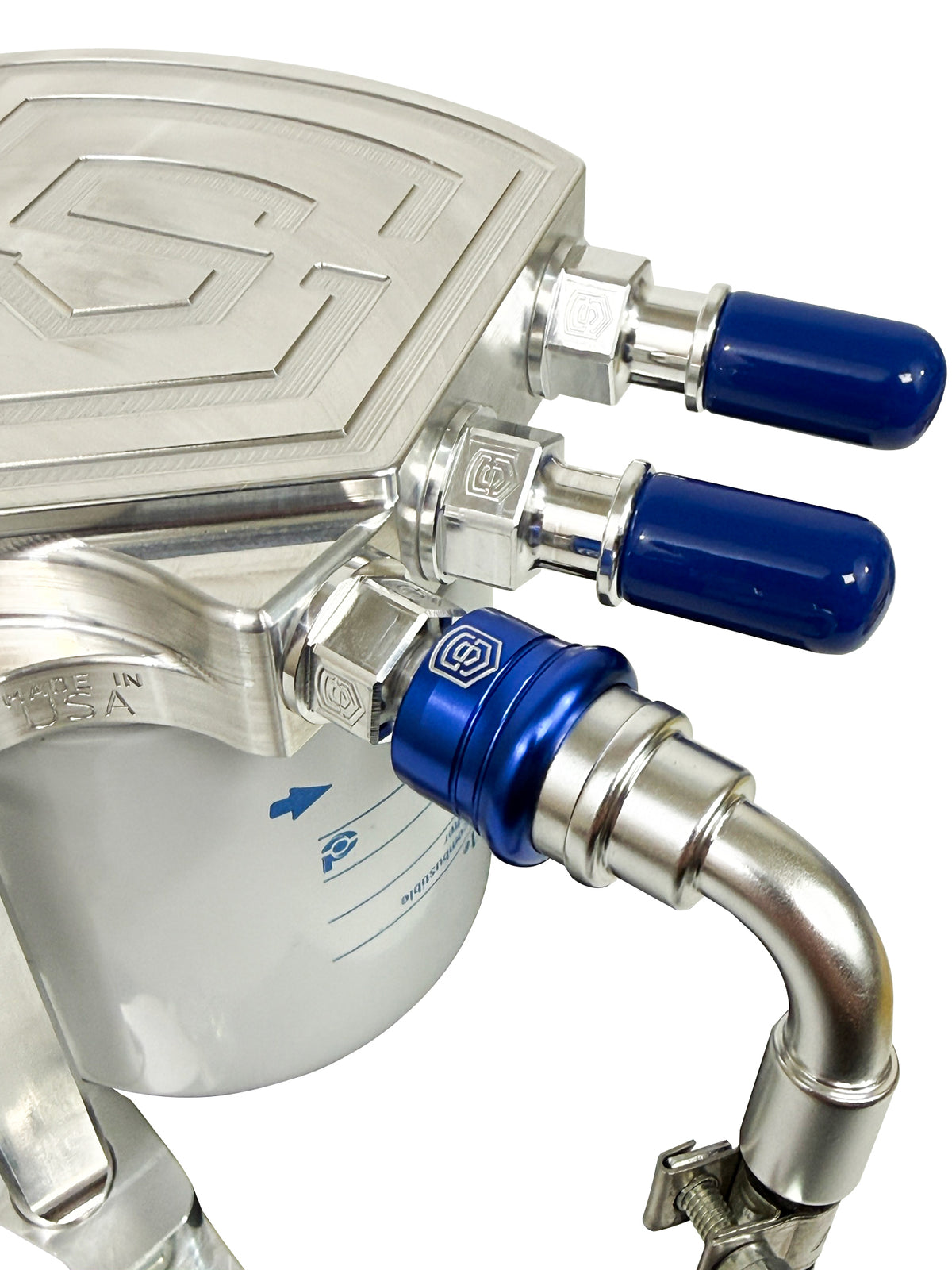

- Aluminum Fuel Leak Prevention Fitting replaces the brittle plastic injector return fitting, with a durable aluminum hose barb and easy-release quick connect
- SEMA Category 4 – Replacement Part
- Made in the USA
Fitment
- 2011–2026 Ford F-250, F-350, F-450, F-550, F-650 and F-750
- 6.7L Power Stroke diesel
Pairs Well With
Works on a completely stock fuel system, and is the perfect complement to the S&S 6.7L Disaster Prevention Kit or the CP4 to DCR Pump Conversion.
